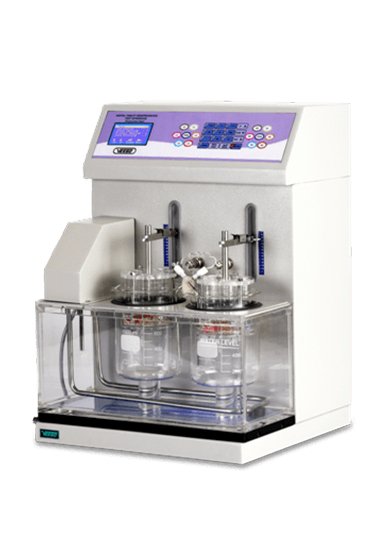

Disintegration Test Apparatus

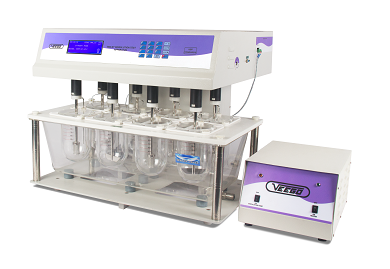

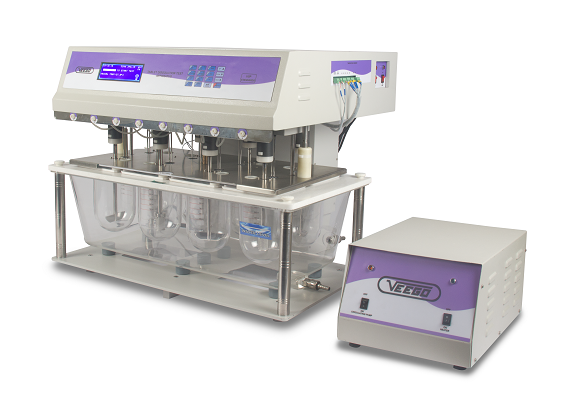

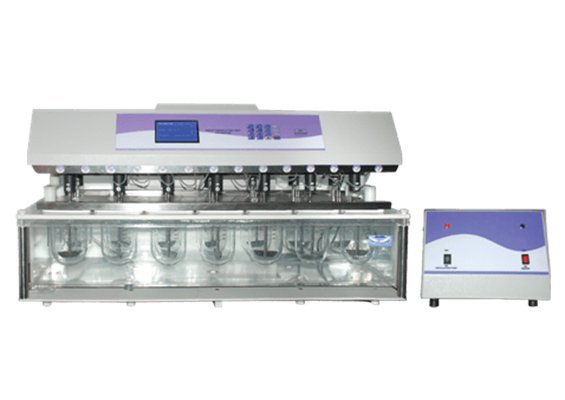

Dissolution Test Apparatus

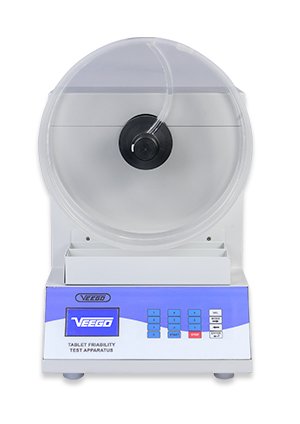

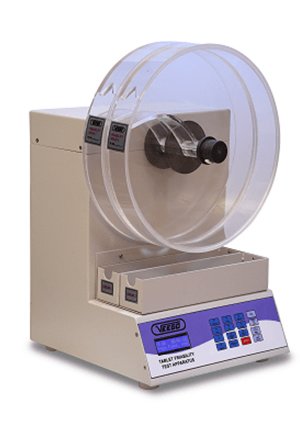

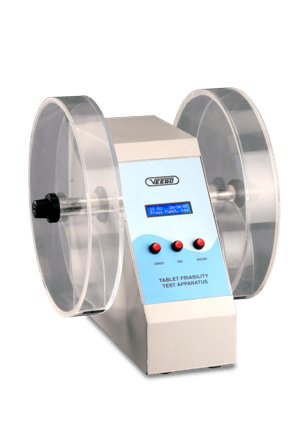

Friability Test Apparatus

Leak Test Apparatus

Karl Fischer Titrator

Digital Ultrasonic Bath

Bulk – Tap Density Apparatus

Research Centrifuge

Tablet Hardness Tester [Monsanto, Table-Top Digital, Portable Digital]

Analytical Weighing Balance

Spectrophotometer

Magnetic Stirrer with Hot Plate

Heating Mantle

Table Top Glass Distillation Unit

Ultra Violet Cabinet

Bursting Strength Tester

Binocular Microscope

Digital Vernier Calliper

APPLICATIONS OF HOT AIR OVEN

Double Walled Oven Universal (Lab. & Memmert Type) is elegantly designed in various applications for microbiology, cell cultivation of animals and plants, food studies; general heating, drying, sterilizing, baking, to perform: material tests, ageing of computer chips, run complex experiments with highly sensitive loads, drying or tempering electronic components, hardening plastic resin. Hot air oven stands for unparalleled precise, even and gentle temperature control.
Double Walled Oven Universal (Lab. & Memmert Type) is low cost options for heating- for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research.

SALIENT FEATURES & CONSTRUCTION OF HOT AIR OVEN

Outer chamber is made of Mild Steel duly powder coated (Standard Model), Inner & Outer S.S. (GMP Model). Inner chamber made of STAINLESS STEEL (304) sheet (Standard Model).
Inner chamber made of STAINLESS STEEL (304) sheet (Standard Model).
Forced convection system by Fan &motorized blowers fitted ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber & no cross contamination.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
Door Gasket fixed on the double walled door for proper sealing.
Fitted with heavy hinges with a ball catcher, spring loaded door closing device. Door is duly insulated.
vapour circulation for over heat release.
U type air heating elements made of high quality Nichrome/Kanthal wire are placed in ribs, at bottom (Lab. Type) and top with left and right side (Memmert Type) for uniform heat distribution.
Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 200°C ± 1°C (Lab. Type) &50°C to 250°C ± 1°C (Memmert Type) . fitted on the front panel for easy operations.
Note:- Laboratory Type in Hot Air Oven heating element fitted only bottom his working Temp. up to 200°C.
Memmert Type in Hot Air Oven heating element fitted three side his working Temp. up to 250°C.
Different programme functions can be designed for a wide variety of applications, and even when used
Temperature is displayed by Digital LED with Set Value and ProcessValue display at front of the oven.
Front Panel is provided with ON/OFF switch, temperature controller and indicators
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF HOT AIR OVEN

Inner Chamber in MM (W x H x D)	355x355x355	455x455x455	455x455x605	605x605x605	605x910x605
Inches Conversion	14 x 14 x 14	18 x 18 x 18	18 x 18 x 24	24 x 24 x 24	24 x 24 x 36
Capacity (Approx.)	43 ltrs	90 ltrs	105 ltrs	215 ltrs	325 ltrs
Heating Load	1.00 KW	1.50 KW	1.50 KW	2. 50 KW	3.00 KW
No. of Shelves	2	2	2	2	3
Temperature Range	5°C above ambient to 200°C (In Lab. Type) ,Ambient 5°C above ambient to 250°C (In Memmert Type)
Temp. Controller	By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Temp. Sensitivity	+1°C.
Air Circulation	By forced convection system (Optional)
Relay	Solid state electronic relay.
Auto Tuning System	System is compatible with auto tuning system

OPTIONAL FEATURES OF HOT AIR OVEN

NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.

Hot Air Oven

APPLICATIONS OF STABILITY/HUMIDITY CHAMBER

SALIENT FEATURES & CONSTRUCTION OF STABILITY/HUMIDITY CHAMBER

Double Wall Construction.
Outer Body duly M.S. Powder Coated and Inner Chamber Made of Stainless Steel 304 (Standard Model) OR Complete Stainless Steel Body (GMP Model).
Fitted with durable fan OR coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
Inner chamber has SS angels for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
A full view inner plexiglass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
Heating is done by indirect heating system by air heaters made of stainless steel placed in the path of moving air in the chamber.
Temperature Range. Temperature ranges of our Stability Chamber models are 20° to 60°C.
Temperature controlled by microprocessor based PID temperature controller having LED display with an accuracy of ±1°C fitted with PT-100 sensor (Resolution 0.1°C)
Humidity System: Humidity is generated by steam injection system consist of boiler tank, placed below the chamber fitted with boiler heater.
Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based PID Controller with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature & humidity controller cum indicator provided with Volt meter on the panel to read the incoming voltage.
Caster wheel mounted for easy portability.
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF STABILITY/HUMIDITY CHAMBER

Usable Space in mm	455 X 455 X 455	845 x 500 x 400	870 x 570 x 560	610 x 610 x 915	610 x 610 x 1220
Capacity	3 Cu ft.	6 Cu ft.	10 Cu ft.	12 Cu ft.	16 Cu ft.
Approx Volume	90	175	280	340	440
No. of Shelves	2	2	3	3	3
Temperature Range	20°C to 60°C (Resolution 0.1°C)
Temperature Controller	By Microprocessor Based PID Digital Temperature Indicator
Temp. Accuracy	±1°C
Humidity Range	45% to 95% at cool temperature
Humidity Accuracy	±3 to 5%RH.
Suitable For	25°C & 60%RH, 30°C & 65%RH, 40°C &75%RH& Also for low humidity 25°C &40%RH, 40°C &25%RH, 30°C &35%RH
Display	LED Display
Relay	Solid state electronic relay with protective heat sink.
Air Circulation	By forced convection system
Insulation	By High density PUF insulation
Operations	Nearly silent operation with ultra-low vibration
High Voltage Protection	Through automatic voltage stabilizer (Optional)
Electric Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF STABILITY/HUMIDITY CHAMBER

PLC based control system
Stand by refrigeration system.
Ethernet / RS485 communication
Data logger
Data scanner complete with sensor
SMS mobile alert system
Door access security system
Safety digital temperature controller
Digital timer
Safety digital temperature controller
CFR 21 part 11 compliance software

Note:- Other Customized Sizes Available on Customer Request.

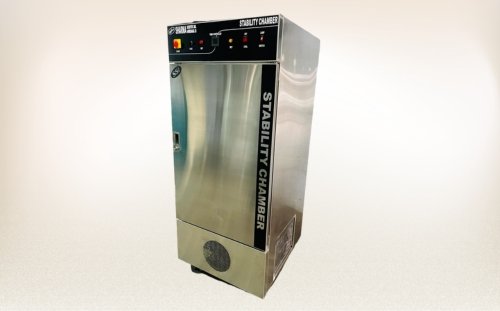

Stability – Humidity Chamber

APPLICATIONS OF MUFFLE FURNACE

SALIENT FEATURES & CONSTRUCTION OF MUFFLE FURNACE

Outer casing is made of thick Mild Steel duly powder coated.
Light weight with ceramic fiber wool insulation (instead of Brick insulation).
Heating elements are made of KANTHAL "A-1" wire.
Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber.
Fitted with heavy hinges & door is duly insulated.
Maximum working temperature range up to 850°C & 1050°C are fitted with wounded muffle.
Maximum Temperature is 900°C and 1100°C.
Fitted with thermocouple & silver fuse for protection of chamber.
Temperature is controlled by PID Controller with display of temperature on panel with an accuracy of ±3%.
Temperature is displayed by Digital LED with Set Value and ProcessValue display at front of the Furnace.
Front Panel is provided with ON/OFF switch, Microprocessor based PID controller and indicators.
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF MUFFLE FURNACE

Inner Chamber in mm (W x H x D)	100 x 100 x 225
Inches Conversion	4 x 4 x 9
Rating in KW	1.7
Temperature Range	Maximum Temperature is 900°C and 1100°C
Heating	By Embedded heater run around the chamber
Temp. Controller	By Microprocessor Based PID Digital TemperatureIndicator cum Controller
Temp. Sensitivity	±5°C OR better by digital Microprocessorbased PID controller
Relay	Solid state electronic relay.
Voltage	Operating Voltage: 220 Volts AC (50 Hz)

OPTIONAL FEATURES OF MUFFLE FURNACE

NOTE: Other Customized Sizes Available on Customer Request.

Muffle Furnace

Polarimeter [Manual & Digital Automatic]

Sieve Shaker [Table-Top & Electromagnetic]

APPLICATIONS OF VACUUM OVEN DOUBLE WALLED

In Double Walled Vacuum Oven the thermal process occur in airtight chamber under desired level of vacuum and maintained temperature. It can help in the prevention of surface reactions (such as oxidation), decontaminating samples (removing lubricants for example) as well as for speeding up the out gassing process.
Double Walled Vacuum Oven is low cost options for Moisture Determination, Out Gassing Solids, Aging Tests, Plating, Chemical Resistance Studies, Drying of Paper, Rubber, and Textiles, Desiccating, Dry Sterilization, Out Gassing Liquids, Vacuum Storage, Electronic Process Control.
Vacuum Ovens are used for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research.

SALIENT FEATURES & CONSTRUCTION OF VACUUM OVEN DOUBLE WALLED

Outer Chamber made of M.S. Powder Coated
Inner chamber is made of STAINLESS STEEL (304 grade).
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
Provided with Door Gasket for proper sealing.
Fitted with heavy hinges & door closing device.
See through transparent window of toughened glass is provided at the front.
Adjustable two air controlling valves are fitted for creation of vacuum in the chamber & release.
Heating elements are made of high quality Nichrome/Kanthal wire are embedded around the chamber. Supplied with 1 or 2 removable shelves.
Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 130°C ± 2°C OR 50°C to 200°C ± 2°C. fitted on the front panel for easy operations.
Front Panel is provided with ON/OFF switch, temperature controller and indicators Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF VACUUM OVEN DOUBLE WALLED

Sizes in mm	225 x 300mm	300 x 380mm	400 x 500mm	200x200x300mm	300x300x400mm	455x455x455mm
Inches Conversion	9 x 12	12 x 15	16 x 20	8 x 8 x 12	12 x 12 x 16	18 x 18 x 18
Inner Shape	Round	Round	Round	Rectangular	Rectangular	Rectangular
Heating Load	2.00 KW	2.00 KW	2.50 KW	2.50 KW	2.50 KW	3.00 KW
No. of Shelves	1	1	2	1	1	2
Temperature Range	50°C to 130°COR 50°C to 200°C
Temp. Controller	By Microprocessor Based PID Digital Temperature Indicator cum Controller.
Temp. Sensitivity	±2°C.
Vacuum	By Compatible Rotary oil sealed or noise free vacuum pump
Relay	Solid state electronic relay with protective heat sink.

OPTIONAL FEATURES OF VACUUM OVEN DOUBLE WALLED

Vacuum Pump	Rotary oil sealed or noise free vacuum pump
Timer Facility	Can be in built with Digital Electronic Timer
Communication Port	with interface and data cable to download data toyour PC
USB System	Can be in cooperated

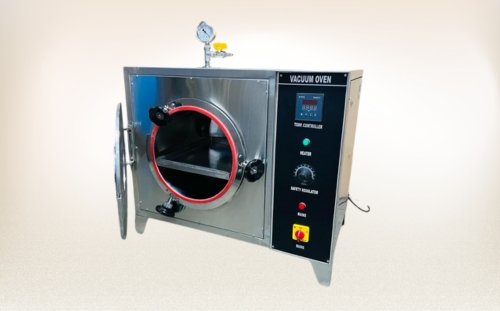

Vacuum Oven

APPLICATIONS OF HEATING PLATE

SALIENT FEATURES & CONSTRUCTION OF HEATING PLATE

Complete body made of P.C.R.C Sheet powder coated OR Complete Stainless Steel Body with top.
Cast iron top of the plate OR S.S. top is 8" Diameter
1500 watts provided with Energy Regulator to control the Temperature up to 300°C.
Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

TECHNICAL SPECIFICATIONS OF HEATING PLATE

Sizes	8”Dia	9”Dia	12”Dia	10”× 16”	12”× 18”	18”× 24”
Shape Type	Round	Round	Round	Rectangular	Rectangular	Rectangular

OPTIONAL FEATURES OF HEATING PLATE

Hot Plate

APPLICATIONS OF WATER BATH

SALIENT FEATURES & CONSTRUCTION OF WATER BATH

Double walled made of heavy gauge stainless steel.
Provided with concentric rings (Removable) of 75mm hole.
Concentric rings can be removed to accommodate containers of various sizes.
Heating by immersion heaters.
Temperature range ambient up to 90oC.
Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 90°C ± 1°C
Operating Voltage: 220 Volts AC (50 Hz)

TECHNICAL SPECIFICATIONS OF WATER BATH

Internal dimensions (LX W XD)	250 x 350 x100mm	300 x 400 x100mm
No. of Holes	6	12
Holes Dia.	75 mm	75 mm
Heating Load	1.0 KW	2.0 KW
Temp. Controller	By Microprocessor Based PID Digital TemperatureIndicator cum Controller.
Temp. Sensitivity	+1°C.
Relay	Solid state electronic relay.
Auto Tuning System	System is compatible with auto tuning system

Water Bath

Laboratory Over Head Stirrer

Flame Photo Meter

Atomic Absorption Spectrophotometry

Digital Thermo Hygrometer

Viscosity Meter

Dissolved Oxygen Meter

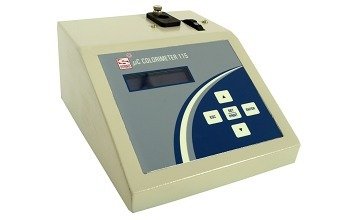

Photo Colorimeter

Fluoride Meter

Pass Box

APPLICATIONS OF PORTABLE AUTOCLAVE

SALIENT FEATURES & CONSTRUCTION OF TABLE PORTABLE AUTOCLAVE

Available Electrically / Gas Heated, Single walled, (joint less body) complete with Stand Stainless Steel Models.
Hydraulically tested upto 40 psi for user safety.
Spring loaded safety valve for pressure adjustment and a dead weight valve works as a safety device.
Wing Type Simple and easy "Press & turn" system of closing lid for single walled units.
Lid is fitted with pressure gauge, safety valve and manual exhaust valve.
Vacuum breaker-cum-purge valve works as a safety device.
Moulded neoprene rubber gasket.

TECHNICAL SPECIFICATIONS OF PORTABLE AUTOCLAVE

Chamber Wall	Single
Exhaust of Pressure	Manually through aexhaustvalve
Pressure Gauge	0-2.1 kgf/cm² (30 psi)
Sterilizing Pressure	0-2.1 kgf/cm² (15 psi) at121°C.
Pressure Vessel	Stainless Steel (SS-304)
Power Supply	220/230V AC, 50/60 Hz

Portable Autoclave

APPLICATIONS OF VERTICAL AUTOCLAVE

SALIENT FEATURES & CONSTRUCTION OF VERTICAL AUTOCLAVE

Inner & Outer Chamber, constructed from Stainless Steel
Bucket / Basket Made of Stainless Steel
Lid made of thick machined stainless Steel Plate
SS knobs lid ensures user safety & safe locking
Lid is fitted with pressure gauge, spring loaded safety valve, double safety valve, manual exhaust valve, vacuum breaker as a safety device
Drain valve facilitates easy cleaning of the chamber
Moulded joint less silicon rubber gasket
All internal joints are argon arc welded, ground & polished to give crevice free internals
Miniature circuit breaker for mains ON/OFF plus safety of control panel Industrial grade energy efficient heaters reduce power bills drastically.
Audio alarm/ buzzer is raised at the end of the cycle on.
Voltage: 220 Volts AC (50 Hz)

TECHNICAL SPECIFICATIONS OF VERTICAL AUTOCLAVE

Inner Dimensions (Dia xHeight)	250x450mm	300x500mm	350x550mm	400x600mm	450x600mm	450x750mm	550x750mm	450x900mm
Inches Conversion	10 x 18	12 x 20	14 x 22	16 x 24	18 x 24	18 x 30	22 x 30	18 x 36
Capacity	22 ltrs	40 ltrs	52ltrs	80 ltrs	98 ltrs	120 ltrs	152 ltrs	200 ltrs
Working Load	2.0 KW	2.0 KW	3.0 KW	3.0 KW	4.0 KW	4.0 KW	6.0 KW	6.0 KW
Gasket	Made of Silicon Rubber
Working pressure	15 PSI
Sterilizing pressure	1.2 kgf / cm (15psi)at 121°c
Working Temp.	121 – 125°C
Inner Pressure Tank	Stainless Steel (SS-304)
Basket	Made of Stainless Steel
Lid Opening	Paddle lifting device
Boiler – HydraulicallyTested	Upto +40 psi
Water Draining System	Hand Operated Valve
Heating	BY ISI Marked Immersion Heaters
Steam & Vacuum Release	By Valve
Power Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF VERTICAL AUTOCLAVE

NOTE: Other Customized Sizes Available on Customer Request.

Vertical Autoclave

APPLICATIONS OF LAMINAR AIR FLOW

Laminar Air Flow Benches Horizontal are designed so as to meet the requirement of US Federal Standard 209 B (BS 5295) providing particle free air to meet class 100 conditions mainly used for various works that require maintenance of the cleanness and purity.
It is Ideal for Culture analysis, Bacteriological & Biological applications in Hospitals, Plant Tissue Culture, Labs, Food, Beverage and Electronic industries.
It provides an economical work environment- suitable for hospitals, drugstore, pharmaceuticals factories, sanitation and anti-epidemic stations.

SALIENT FEATURES & CONSTRUCTION OF LAMINAR AIR FLOW

Low Cost.
Low Noise.
User Friendly Ergonomic Design.
Controlled Environment Particulate Free Product Protection.
Basic material is thick board wood front back top and exterior surfaces are covered with Formica. OR Coldrolled steel duly powder coated OR Stainless Steel (SS-304) (as ordered).
Working table is made of StainlessSteel Sheet (SS-304 grade).
All interior surfaces are epoxy painted filter seat is carefully formed, installed and checked for leakage.
Side panels & front doors are made of acrylic transparent plexiglass. The highly efficient HEPA filter maintains the optimum cleanliness and purity.
The pre-filter fitted extends the life of HEPA filter drastically. Air drawn through pre-filter is made to pass through highly effective HEPA (High Efficiency Particular Air) filters having efficiency rating as high as 99.99% with cold DOP and 99.97% with hot DOP, thus retaining all air-borne particles of size 0.3 micron and larger.
Working area is illuminated by fluorescent lighting fitted to the unit.
The blower and motor assembly is statically and dynamically balanced of 1/5 H.P. capacity operates with minimum noise level.
Supplied complete with S.S. Table Top, Transparent front door, Static Pressure Manometer. Built in U.V. Germicidal Light and Cock for gas, air or vacuum line, HEPA filters and pre-filter.
Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

TECHNICAL SPECIFICATIONS OF LAMINAR AIR FLOW

Working Table Size	2′ x 2′	3′ x 2′	4′ x 2′	6′ x 2′
Working Size	2′ x 2′ x 2′	3′ x 2′ x 2′	4′ x 2′ x 2′	6′ x 2′ x 2′
HEPA Filter Size	2′ x 2′ x 6”	3′ x 2′ x 6	4′ x 2′ x 6”	3′ x 2′ x 6”
No. of Motor/Blower	1	1	1	2
Illumination	1 x 20 w	1 x 20 w	2 x 40 w	2 x 40 w
Main Filter	HEPA Filter (99.97% efficient at 0.3micronparticles)
Pre-Filter	High efficiency pre-filter (Washable)
Sterilization	By U.V. Germicidal Tube in work area
Front Door	Made of Plexi Glass OR Acrylic
Standard Accessory	Gas/Air cock
Electric Supply	AC 230V, 50/60Hz

OPTIONAL FEATURES OF LAMINAR AIR FLOW

Spare HEPA Filters	Can be provided at an extra cost
Magnetic Gauge	(To track filter pressure) in lieu of staticpressure manometer.
Interlocking	U.V. Germicidal tube & fluorescent light withauto switch off/on mode for motor blower when the door is closed/open.
Hour Meter totalizer	For U.V. light
Microprocessor LCD Controller with Auto Switchoff mode	For motor blower when door is closed. Digitalbuzzer timer sounds an audio alarm on completion of sterilizing time of thechamber and the switches off U.V. germicidal tube and automatically switchesON the fluorescent light, alerting the user that the bench is ready for use
Can be fitted with microchip controlledelectronic digital indicator	To display air flow rate fitted with sensor

Laminar Air Flow

Antibiotic Zone Reader

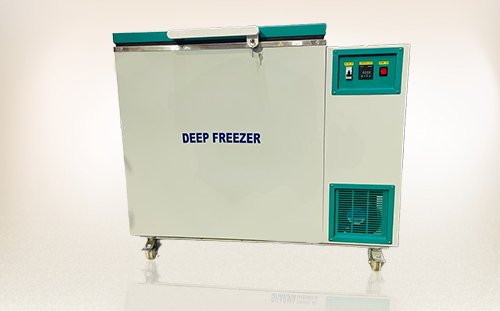

APPLICATIONS OF DEEP FREEZER

Microprocessor controlled, solid-state Low Temperature Cabinet (Vertical Models) with micro control and CFC free refrigeration system. to meet various standard applications in diverse industrial applications such as medical, agricultural institutions, bio-chemical industrial and research laboratories.
It is ideal laboratory freezer to provide a perfect freezing environment for the preservation of vaccines, blood plasma, test samples, specimens at desired temperature (Available in 3 Models i.e. -20°C, -40°C, &-80°C)
Also used for preservation of red blood plasma, white blood cell, skin, bone, bacteria, semen, biomedical product in small medium and large blood centres.
Suitable for hospitals, drugstore, pharmaceuticals factories, sanitation and anti-epidemic stations and clinics.

SALIENT FEATURES & CONSTRUCTION OF DEEP FREEZER

Robust construction Outer chamber is made of Mild Steel duly pre treated& finished with powder coated paint for lasting finish. Inner chamber made of STAINLESS STEEL SHEET (304 Grade).
Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
A full view inner plexi-glass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
Direct cooling system for stable temperature control by ISI marked Compressor/Condensing Units CFC free & R-134 a eco friendly refrigerant.
Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature provided with Volt meter on the panel to read the incoming voltage.
Caster wheel mounted for easy portability.
Supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF DEEP FREEZER

Approx Volume (Ltr)	90	170	280	340	440
Capacity Cu.ft.	3Cu.ft.	6 Cu.ft.	10 Cu.ft.	12 Cu. ft.	15 Cu. ft.
Temperature	Available in 3 Models i.e.-20°C, -40°C, -80°C.
Temp. Controller	By Microprocessor Based PIDDigital Temperature Indicator cum Controller.
Temp. Accuracy	±1°C
Display:	LED Display for SetValue(SV) and Process Value (PV)
Relay	Solid state electronic relaywith protective heat sink.
Insulation	By High density PUFinsulation
Operations	Nearly silent operation withultra-low vibration
High Voltage Protection	Through automatic voltagestabilizer (Optional) (Recommendation)
Electric Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF DEEP FREEZER

GMPmodels	Withinner chamber & outer body complete made of Stainless Steel
TemperatureAlarm	For Highand Low Temperature Variations
TemperatureRecorder	By Weeklytemperature recorder
PrintingFacility	By Builtin Mini Printer to record temperature.
Controllingof Temperature	ByProfile Digital Microcontroller having 4 Programmers each of16 steps (total64 steps of ramp / soak profile)
PLC BasedControl Systems	21 CFRPart 11 With Touch Screen Display with Direct Thermal / Dot Matrix Printer.
LCDController with Data Logger	(16 x 2)with optional RS-485 communication ports, cables, window based software withinbuilt data recording.
CommunicationPort	CommunicationPort with interface and data cable to download data to your PC.
RegulatedVoltage	ByVoltage stabilizer

Deep Freezer

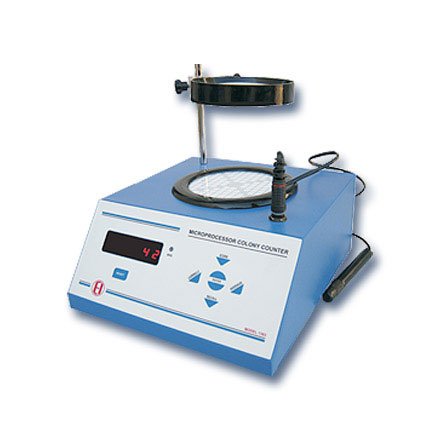

Digital Colony Counter

APPLICATIONS OF BOD INCUBATOR

Microprocessor controlled, solid-state heating/cooling incubator (BOD Incubator) down to earth.
BOD Incubator is specially designed for incubation of Biochemical Oxygen demand on water and sewage; can be used as environmental study and growth chamber by incorporating lighting and humidification system.
BOD Incubator is Used in various applications for microbiology, cell cultivation of animals, plants & food studies- where experiments requiring low temperature conditions. Used for microorganism or activation, good storage and desalting process of enzyme extracts and for preservation of vaccines, insulin, level extracts.

SALIENT FEATURES & CONSTRUCTION OF BOD INCUBATOR

Robust construction outer chamber is made of Mild Steel duly pretreated& finished with powder coated paint for lasting finish (Standard Model) Inner & Outer S.S. (GMP Model).
Inner chamber made of STAINLESS STEEL SHEET (304 Grade) (Standard Model).
Fitted with durable fan OR coaxial blower for forced air circulation at triple walled back to maintain temperature uniformity in the chamber.
Outer front double walled door is insulated and is fitted with magnetic tape for air tight closing for no temperature loss, provided with lock and key arrangement.
Door operated illumination lamp is fitted inside the chamber for easy visibility.
A full view inner plexiglass door enables inspection and monitoring of inner chamber specimens without disturbing the process temperature.
High grade PUF INSULATION between outer and inner chamber for minimal thermal losses.
Cooling is done by finned tube evaporator lie in the air circulation path by ISI marked Compressor/Condensing Units CFC free & R-134 aeco friendly refrigerant.
Heating elements are placed in the path of moving air duly insulated from the body.
Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
Control panel having all controls and circuitry are housed at the top fitted with Temperature controller cum Indicator Microprocessor based with LED display for Set Value (SV) & Process Value (PV) to select any desired temperature on the panel.
Caster wheel mounted for easy portability.
BOD Incubator is supplied with cord and plug.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF BOD INCUBATOR

Usable Space in CM	45 x 45 x 45	70 x 50 x 50	90 x 60 x 60	90 x 60 x 60	70 x 90 x 60
Capacity	3 cu. ft	6 cu. ft	10 cu. ft	12 cu. ft	16 cu. ft
Approx Volume (Ltr) (Approx.)	90 ltrs	175ltrs	280ltrs	340ltrs	440ltrs
No. of Shelves	2	2	2	2	2
Temperature Range	5°C above ambient to 60°C (Resolution0.1°C)
Temp. Controller	By Microprocessor Based PID Digital TemperatureIndicator and Controller.
Temp. Accuracy	±0.5°C
Display	LED Display for Set Value(SV) and Process Value(PV)
Relay	Solid state electronic relay.
Auto Tuning System	System is compatible with auto tuning system
Air Circulation	By forced convection system
Insulation	By High density PUF insulation
High Voltage Protection	Through automatic voltage stabilizer (Optional)
Electric Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF BOD INCUBATOR

PLC based control system
Stand by refrigeration system.
Ethernet / RS485 communication
Data logger
Data scanner complete with sensor
SMS mobile alert system
Door access security system
Safety digital temperature controller
Digital timer
Safety digital temperature controller
CFR 21 part 11 compliance software

NOTE: Other Customized Sizes Available on Customer Request.

B.O.D. INCUBATOR

APPLICATIONS OF BACTERIOLOGICAL INCUBATOR

Bacteriological Incubator Double walled is elegantly designed in various applications for microbiology, cell cultivation of animals and plants, food studies. Our Incubators stands for unparallel precise, even and gentle temperature control.
Double Walled Incubators is lowcost options for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research used for Drying of slides, paraffin embedding, tissue culture work, incubation of antibody test, excellent for Microbiological determinations, crystallization studies and Incubation of hydroxyl steroids.

SALIENT FEATURES & CONSTRUCTION OF BACTERIOLOGICAL INCUBATOR

Outer chamber is made of Mild Steel duly powder coated (Standard Model) Inner & Outer S.S. (GMP Model).
Inner chamber made of STAINLESS STEEL (304) sheet (Standard Model).
Forced convection system ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber.
Door has double viewing window to observe the sample placed inside the chamber without disturbing the thermal condition.
Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
Door Gasket fixed on the double walled door for proper sealing.
Fitted with heavy hinges with a ball catcher, spring loaded door closing device. Door is duly insulated.
Adjustable two ventilation slides control inner air / vapor circulation.
U type air heating elements made of high quality Ni chrome/Kanthal wire are placed in ribs, at bottom and sides for uniform heat distribution.
Inner chamber has ribs for placing the shelves at convenient levels.
Supplied with 2 or 3 removable shelves.
Temperature is controlled by digital PID controller from 5°C above ambient to70°C ± 1°C. fitted on the front panel for easy operations.
Proper 37°C ±1°C temperature mention in inner chamber required in air condition room temperature 25°C.
Different programme functions can be designed for a wide variety of applications, and even when used Temperature is displayed by Digital LED with Set Value and ProcessValue display at front of the incubator.
Front Panel is provided with ON/OFF switch, temperature controller and indicators.
Operating Voltage: 220 Volts AC (50 Hz).

TECHNICAL SPECIFICATIONS OF BACTERIOLOGICAL INCUBATOR

Inner Chamberin MM (W x H x D)	355x355x355	455x455x455	455 x 455 x 605	605x605x605	605x910x605
InchesConversion	14 x 14 x 14	18 x 18 x 18	18 x 18 x 24	24 x 24 x 24	24 x 36 x 24
Capacity	43 ltrs	90 ltrs	120 ltr	215 ltrs	325 ltrs
Heating Load	0.50 KW	1.00 KW	1.50 KW	1. 50 KW	2.00 KW
No. of Shelves	2	2	2	2	3
TemperatureRange	5°C aboveambient to 70°C
Temp.Controller	ByMicroprocessor Based PID Digital Temperature Indicator cum Controller.
Temp.Sensitivity	±1°C.
Air Circulation	By forcedconvection system
Relay	Solid state electronicrelay.
Auto TuningSystem	System iscompatible with auto tuning system

OPTIONAL FEATURES OF BACTERIOLOGICAL INCUBATOR

NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.

NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.

Laboratory Bacteriological Incubator

Bunsen Burner

Magnetic Stirrer

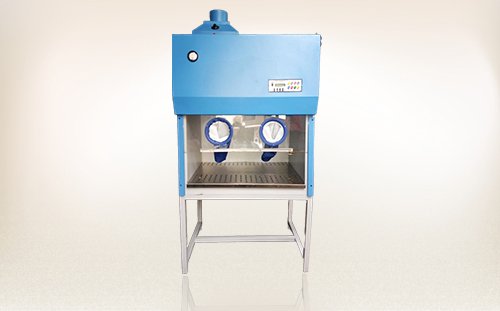

APPLICATIONS OF BIOSAFETY CABINET

BIOSAFETY BIOLOGICAL SAFETY CABINET Class II re-circulates 70% of air through HEPA filter & 30% Exhaust
Biosafety Cabinet is used to protect personal, product and the environment from exposure to biohazards and cross contamination during routine procedures.
Used for various applications in the life science, clinical, pharmaceutical and industrial laboratory.
These Cabinets are designed to provide 3 basic types of protection.

SALIENT FEATURES & CONSTRUCTION OF BIOSAFETY CABINET

Low Cost.
Low Noise.
User Friendly Ergonomic Design.
Controlled Environment Particulate Free Product Protection.
Aerodynamic designed airflow grille maintains safety by preventing blockage.
Silent Vibration
Free Blower ensure noiseless operation.
The Unit is suitable for CLASS 100 conditions.
70% of the air is re-circulated through the HEPA filter.
The contaminated air is drawn by the blower through the plenum of the cabinet.
30% of the air is exhausted from work area.
Filtered Exhaust - protects ambient environment, and avoids build up, air borne particles.
The exhaust of Safety Cabinet is connected to the Virus Burn out Unit for product and personnel protection.
Air is drawn through Pre-Filter and is made to pass through high effective HEPA (High Efficiency Particular Air) filters.
The efficiency of HEPA Filter is greater than 99.97% down to 0.3 micron.
Basic material is thick board wood front back top and exterior surfaces are covered with Formica. OR Cold rolled steel duly powder coated OR Stainless Steel (SS-304) (as ordered).
Working table is made of Stainless Steel Sheet (SS-304 grade).
Window opens to 20cm±5mm working height with predefined locking device.
Built in U.V. Germicidal light
Facilitates sterilization of working area before and after use. Cock - for gas, air or vacuum, (only 1 no.) is provided.
Working area is illuminated by fluorescent lighting fitted to the unit.
The blower and motor assembly is statically and dynamically balanced of 1/5 H.P. capacity operates with minimum noise level.
Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

TECHNICAL SPECIFICATIONS OF BIOSAFETY CABINET

Working Table Size	2′ x 2′	3′ x 2′	4′ x 2′	6′ x 2′
Working Size	2′ x 2′ x 2′	3′ x 2′ x 2′	4′ x 2′ x 2′	6′ x 2′ x 2′
HEPA Filter Size	2′ x 2′ x 6″	3′ x 2′ x 6″	4′ x 2′ x 6″	3′ x 2′ x 6″
No. of Motor/Blower	1	1	1	1
Illumination	1 x 40 w	1 x 40 w	2 x 40 w	2 x 40 w
Cabinet Materiel	Cold Rolled Steel Powder Coated or Stainless Steel (SS-304)
Work Table	Stainless Steel (SS-304 grade)
View Window	In work chamber to monitor the samples
Main Filter	HEPA Filter (99.97% efficient at 0.3micron particles)
Pre-Filter	High efficiency pre-filter (Washable)
Sterilization	By U. V. Germicidal Tube in work area
Manometer	Static pressure analogue type.
Sliding Sash	Counter balanced door for effortless operation
Standard Accessory	Gas/Air cock and Multipoint 15/5 Amp. electric socket
Electric Supply	AC 230V, 50/60Hz

OPTIONAL FEATURES OF BIOSAFETY CABINET

Static Pressure Manometer	Can be provided at an extra cost
Exhaust Ducting	Per running feet cost will be charged extra
HEPA Filtration at exhaust	Can be done at an extra cost
Virus burn out at Exhaust	Can be done at an extra cost
Magnehelic pressure differential gauge	To track filter pressure in lieu of static pressure manometer (Can beprovided at an extra cost)
Interlocking of U.V . germicidal tube & fluorescent light	with auto switch off/on mode for motor blower when the door isclosed/open
Hour meter totalizer for U.V . light	Can be done at an extra cost
Glove Ports and Gauntlets	Can be done at an extra cos
Fumigation Tray – for effective disinfection/ decontamination	Can be done at an extra cost
Electronic filter choke alarm (Differential pressure monitor).	Can be done at an extra cost
Microprocessor LCD controller	With auto switch off mode for motor blower when door is closed.
Digital buzzer timer	Sounds an audio alarm on completion of sterilizing time of the chamber

Bio – Safety Cabinet

Vortex / Cyclo Mixer

Membrane Filtration Assembly

Micropipette

APPLICATIONS OF ROTARY FLASK SHAKER

Shaker is used in various Lab & Industries, Pathological work for Shaking the Liquid in Conical Glass Flask from 100 ml to 1000 ml capacity.
Rotary Flask shakers are ideal for mixing and development of cultures, chemicals, solvents, and assays etc. in Microbiological, Cell Culture & Life Science laboratories.
It is continuous-duty device designed for theagitation of solid phase peptide synthesis flasks and other similar glassware.

SALIENT FEATURES & CONSTRUCTION OF ROTARY FLASK SHAKER

It is a compact bench top model unit
The shaker is mounted on ball bearing crankshafts to give an orbital circular motion to the flasks.
The diameter of the orbit is approximately 2".
Compact counter balanced drive mechanism ensures high stability and reliability even in continuous operation & uneven load distribution.
Speed range is 50 - 200 RPM.
Fitted with heavy duty motor having variable speed.
Speed can be controlled through variable speed regulator knob or by mechanical speed controller.
Complete body is mounted on heavy mild steel angle iron frame making it rigid and sturdy for smooth operations.
Available in stainless steel platform fitted with stainless steel lotus type clamps to hold flasks, OR Mild steel painted platform fitted with rubber discs to hold conical flasks from 100 ml to 1000 ml capacity.
Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.

TECHNICAL SPECIFICATIONS OF ROTARY FLASK SHAKER

Platform Size in cm	45 x 45	55 x 55	65 x 65	105 x 105
Flask Capacity in ml	100	100	100	100
	250	250	250	250
	500	500	500	500
	1000	1000	1000	1000
Can Accommodation	25	36	–	–
	16	25	36	81
	9	16	25	64
	–	–	–	49
Speed Range	50 – 200 RPM
Speed Control	By variable speed regulator knob or by mechanicalspeed controller
Operations	Nearly silent operation with ultra-low vibration
Electric Supply	220/230V AC, 50/60Hz

OPTIONAL FEATURES OF ROTARY FLASK SHAKER

Automatic Digital Timer	Can be provided at an extra cost
Digital RPM Meter with proximity sensor	Can be provided at an extra cost
Spare platform with rubber discs	Can be provided at an extra cost
Automatic restart at preset speed in case ofpower failure.	Can be provided at an extra cost

Digital / Microprocessor based pH Meter

Digital / Microprocessor based Conductivity – TDS Meter

Refractometer [Manual, Digital, Automatic]

Moisture Analyzer & Infrared Moisture Balance

Auto Titrator

Potentiometric Titrator

Melting Point Apparatus

Disintegration Test Apparatus

Dissolution Test Apparatus

Friability Test Apparatus

Leak Test Apparatus

Karl Fischer Titrator

Digital Ultrasonic Bath

Bulk – Tap Density Apparatus

Research Centrifuge

Tablet Hardness Tester [Monsanto, Table-Top Digital, Portable Digital]

Analytical Weighing Balance

Spectrophotometer

Magnetic Stirrer with Hot Plate

Heating Mantle

Table Top Glass Distillation Unit

APPLICATIONS OF ULTRA VIOLET CABINET

Ultra Violet Cabinet

Bursting Strength Tester

Binocular Microscope

Digital Vernier Calliper

APPLICATIONS OF HOT AIR OVEN

SALIENT FEATURES & CONSTRUCTION OF HOT AIR OVEN

TECHNICAL SPECIFICATIONS OF HOT AIR OVEN

OPTIONAL FEATURES OF HOT AIR OVEN

NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.

Hot Air Oven

APPLICATIONS OF STABILITY/HUMIDITY CHAMBER

SALIENT FEATURES & CONSTRUCTION OF STABILITY/HUMIDITY CHAMBER

TECHNICAL SPECIFICATIONS OF STABILITY/HUMIDITY CHAMBER

OPTIONAL FEATURES OF STABILITY/HUMIDITY CHAMBER

Note:- Other Customized Sizes Available on Customer Request.

Stability – Humidity Chamber

APPLICATIONS OF MUFFLE FURNACE

SALIENT FEATURES & CONSTRUCTION OF MUFFLE FURNACE

TECHNICAL SPECIFICATIONS OF MUFFLE FURNACE

OPTIONAL FEATURES OF MUFFLE FURNACE

NOTE: Other Customized Sizes Available on Customer Request.

Muffle Furnace

Polarimeter [Manual & Digital Automatic]

Sieve Shaker [Table-Top & Electromagnetic]

APPLICATIONS OF VACUUM OVEN DOUBLE WALLED

SALIENT FEATURES & CONSTRUCTION OF VACUUM OVEN DOUBLE WALLED

TECHNICAL SPECIFICATIONS OF VACUUM OVEN DOUBLE WALLED

OPTIONAL FEATURES OF VACUUM OVEN DOUBLE WALLED

Vacuum Oven

APPLICATIONS OF HEATING PLATE

SALIENT FEATURES & CONSTRUCTION OF HEATING PLATE

TECHNICAL SPECIFICATIONS OF HEATING PLATE

OPTIONAL FEATURES OF HEATING PLATE

Hot Plate

APPLICATIONS OF WATER BATH

SALIENT FEATURES & CONSTRUCTION OF WATER BATH

TECHNICAL SPECIFICATIONS OF WATER BATH

Water Bath

Laboratory Over Head Stirrer

Flame Photo Meter

Atomic Absorption Spectrophotometry

Digital Thermo Hygrometer

Viscosity Meter

Dissolved Oxygen Meter

Photo Colorimeter

Fluoride Meter

APPLICATIONS OF PASS BOX DYNAMIC

SALIENT FEATURES & CONSTRUCTION OF PASS BOX DYNAMIC

Pass Box

APPLICATIONS OF PORTABLE AUTOCLAVE

SALIENT FEATURES & CONSTRUCTION OF TABLE PORTABLE AUTOCLAVE

TECHNICAL SPECIFICATIONS OF PORTABLE AUTOCLAVE

Portable Autoclave

APPLICATIONS OF VERTICAL AUTOCLAVE

SALIENT FEATURES & CONSTRUCTION OF VERTICAL AUTOCLAVE

TECHNICAL SPECIFICATIONS OF VERTICAL AUTOCLAVE

OPTIONAL FEATURES OF VERTICAL AUTOCLAVE

NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.

NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.
