Digital / Microprocessor based pH Meter
Digital / Microprocessor based Conductivity – TDS Meter
Magnetic Stirrer with Hot Plate
APPLICATIONS OF HOT AIR OVEN
- Double Walled Oven Universal (Lab. & Memmert Type) is elegantly designed in various applications for microbiology, cell cultivation of animals and plants, food studies; general heating, drying, sterilizing, baking, to perform: material tests, ageing of computer chips, run complex experiments with highly sensitive loads, drying or tempering electronic components, hardening plastic resin. Hot air oven stands for unparalleled precise, even and gentle temperature control.
- Double Walled Oven Universal (Lab. & Memmert Type) is low cost options for heating- for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research.
SALIENT FEATURES & CONSTRUCTION OF HOT AIR OVEN
- Outer chamber is made of Mild Steel duly powder coated (Standard Model), Inner & Outer S.S. (GMP Model). Inner chamber made of STAINLESS STEEL (304) sheet (Standard Model).
- Inner chamber made of STAINLESS STEEL (304) sheet (Standard Model).
- Forced convection system by Fan &motorized blowers fitted ensures good mixing, strong dispersion and maintains higher temperature uniformity inside the chamber & no cross contamination.
- Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & Inner chamber.
- Door Gasket fixed on the double walled door for proper sealing.
- Fitted with heavy hinges with a ball catcher, spring loaded door closing device. Door is duly insulated.
- vapour circulation for over heat release.
- U type air heating elements made of high quality Nichrome/Kanthal wire are placed in ribs, at bottom (Lab. Type) and top with left and right side (Memmert Type) for uniform heat distribution.
- Inner chamber has ribs for placing the shelves at convenient levels. Supplied with 2 or 3 removable shelves.
- Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 200°C ± 1°C (Lab. Type) &50°C to 250°C ± 1°C (Memmert Type) . fitted on the front panel for easy operations.
- Note:- Laboratory Type in Hot Air Oven heating element fitted only bottom his working Temp. up to 200°C.
- Memmert Type in Hot Air Oven heating element fitted three side his working Temp. up to 250°C.
- Different programme functions can be designed for a wide variety of applications, and even when used
- Temperature is displayed by Digital LED with Set Value and ProcessValue display at front of the oven.
- Front Panel is provided with ON/OFF switch, temperature controller and indicators
- Operating Voltage: 220 Volts AC (50 Hz).
TECHNICAL SPECIFICATIONS OF HOT AIR OVEN
| Inner Chamber in MM (W x H x D) | 355x355x355 | 455x455x455 | 455x455x605 | 605x605x605 | 605x910x605 |
|---|---|---|---|---|---|
| Inches Conversion | 14 x 14 x 14 | 18 x 18 x 18 | 18 x 18 x 24 | 24 x 24 x 24 | 24 x 24 x 36 |
| Capacity (Approx.) | 43 ltrs | 90 ltrs | 105 ltrs | 215 ltrs | 325 ltrs |
| Heating Load | 1.00 KW | 1.50 KW | 1.50 KW | 2. 50 KW | 3.00 KW |
| No. of Shelves | 2 | 2 | 2 | 2 | 3 |
| Temperature Range | 5°C above ambient to 200°C (In Lab. Type) ,Ambient 5°C above ambient to 250°C (In Memmert Type) | ||||
| Temp. Controller | By Microprocessor Based PID Digital Temperature Indicator cum Controller. | ||||
| Temp. Sensitivity | +1°C. | ||||
| Air Circulation | By forced convection system (Optional) | ||||
| Relay | Solid state electronic relay. | ||||
| Auto Tuning System | System is compatible with auto tuning system | ||||
OPTIONAL FEATURES OF HOT AIR OVEN
- Data logger
- Data scanner complete with sensor
- CFR 21 Part 11 compliance software for data logger/scanner
- Safety digital temperature controller
- Timer
NOTE: AIR CIRCULATION FAN OR Motorized Blower IS RECOMMENDED FOR 18”×18”×24” and above Size Model.
Hot Air Oven
Analytical Weighing Balance
APPLICATIONS OF WATER BATH
- Double Walled Water Bath generally used for evaporating liquids for boiling the material.
- Double Walled Water Bath is low cost options for heating / boiling ideal tool for Laboratories, Pharmaceutical, Food & Beverage Industries and Institutions.
SALIENT FEATURES & CONSTRUCTION OF WATER BATH
- Double walled made of heavy gauge stainless steel.
- Provided with concentric rings (Removable) of 75mm hole.
- Concentric rings can be removed to accommodate containers of various sizes.
- Heating by immersion heaters.
- Temperature range ambient up to 90oC.
- Temperature is controlled by electronic digital temperature indicator cum controller from 50°C to 90°C ± 1°C
- Operating Voltage: 220 Volts AC (50 Hz)
TECHNICAL SPECIFICATIONS OF WATER BATH
| Internal dimensions (LX W XD) | 250 x 350 x100mm | 300 x 400 x100mm |
|---|---|---|
| No. of Holes | 6 | 12 |
| Holes Dia. | 75 mm | 75 mm |
| Heating Load | 1.0 KW | 2.0 KW |
| Temp. Controller | By Microprocessor Based PID Digital TemperatureIndicator cum Controller. | |
| Temp. Sensitivity | +1°C. | |
| Relay | Solid state electronic relay. | |
| Auto Tuning System | System is compatible with auto tuning system | |
Water Bath
APPLICATIONS OF HEATING PLATE
- Laboratory Heating Plate is a round shape heating plate with diameter 8"
SALIENT FEATURES & CONSTRUCTION OF HEATING PLATE
- Complete body made of P.C.R.C Sheet powder coated OR Complete Stainless Steel Body with top.
- Cast iron top of the plate OR S.S. top is 8" Diameter
- 1500 watts provided with Energy Regulator to control the Temperature up to 300°C.
- Supplied complete with cord & plug to work on Single Phase 220 / 230 volts A.C. supply.
TECHNICAL SPECIFICATIONS OF HEATING PLATE
| Sizes | 8”Dia | 9”Dia | 12”Dia | 10”× 16” | 12”× 18” | 18”× 24” |
|---|---|---|---|---|---|---|
| Shape Type | Round | Round | Round | Rectangular | Rectangular | Rectangular |
OPTIONAL FEATURES OF HEATING PLATE
- Microprocessor based double display PID temperature controller
- Three speed rotary switch for heating
Hot Plate
APPLICATIONS OF COD DIGESTER APPARATUS
- Digital COD Digester Apparatus is low cost options for heating- for various experiments in, industries, R&D labs, Pharmaceutical, Food & Beverage Industries and Institutions- in the field of Medical, Agricultural and Industrial Research.
- Digital COD Digester user for determination of chemical oxygen demand.
SALIENT FEATURES & CONSTRUCTION OF COD DIGESTER APPARATUS
- Outer chamber is made of Mild Steel duly powder coated
- Block made of Solid Aluminium.
- Solid block type heated unit with provision for sample to be digested at a time in 38 mm dia reaction vessels with 20ml sample size at temp. 150°C ±1°C controlled
- All the sample are heated at 150°C within ±1°C accuracy with almost uniformity of temperature.
- COD Digester Apparatus fitted with Digital Double Display PID Controller with timer, Buzzer.
- Temperature is displayed by Digital LED with Set Value and Process Value display at front of the COD Apparatus.
- Designed with Glass Reactions and air condensers.
- Being digested for 2 hours can analyses using calorimeter or conventional titration method.
- Front Panel is provided with ON/OFF switch, temperature controller and indicators
- Operating Voltage: 220 Volts AC (50 Hz).
TECHNICAL SPECIFICATIONS OF COD DIGESTER APPARATUS
| Available Sizes | 6Tube | 9Tube | 12Tube | 15Tube | 18Tube | 21Tube | 24Tube |
|---|---|---|---|---|---|---|---|
| Temp. Controller | By Microprocessor Based PID Digital Temperature Indicatorcum Controller. | ||||||
| Temp. Sensitivity | ±1°C. | ||||||
| Timer | Inbuilt timer in Temp. Indicator cum controller | ||||||
| Relay | Solid state electronic relay. | ||||||
| Auto Tuning System | System is compatible with auto tuning system | ||||||
OPTIONAL FEATURES OF COD DIGESTER APPARATUS
- Glass Vessel
- Glass Air Condenser
C.O.D. Digester Unit
C.O.D. Analyzer
Vacuum Pump
APPLICATIONS OF ULTRA VIOLET CABINET
- Ultra Violet (UV) Lamp emits Ultraviolet (UV) light which is an electromagnetic radiation with a wavelengthfrom 10 nm to 400 nm, shorter than that of visible light but longer than X-rays. There are numerous application of UV lamps includes- Disinfection to forensic analysis.
- UV cabinet supplied Ultra Violet tubes to various Government departments in India including many forensic labs and research establishments.
Ultra Violet Cabinet
Rotary Evaporator
APPLICATIONS OF MUFFLE FURNACE
- Muffle Furnace is elegantly designed in various applications for R&D labs, Chemical Industries, Pharma & Foundries for making ash for chemical analysis.
- Low Cost option for heating the material on high temperature.
SALIENT FEATURES & CONSTRUCTION OF MUFFLE FURNACE
- Outer casing is made of thick Mild Steel duly powder coated.
- Light weight with ceramic fiber wool insulation (instead of Brick insulation).
- Heating elements are made of KANTHAL "A-1" wire.
- Thermal loss is prevented by ceramic fiber insulation in space between the outer body & heating chamber.
- Fitted with heavy hinges & door is duly insulated.
- Maximum working temperature range up to 850°C & 1050°C are fitted with wounded muffle.
- Maximum Temperature is 900°C and 1100°C.
- Fitted with thermocouple & silver fuse for protection of chamber.
- Temperature is controlled by PID Controller with display of temperature on panel with an accuracy of ±3%.
- Temperature is displayed by Digital LED with Set Value and ProcessValue display at front of the Furnace.
- Front Panel is provided with ON/OFF switch, Microprocessor based PID controller and indicators.
- Supplied with cord and plug.
- Operating Voltage: 220 Volts AC (50 Hz).
TECHNICAL SPECIFICATIONS OF MUFFLE FURNACE
| Inner Chamber in mm (W x H x D) | 100 x 100 x 225 |
|---|---|
| Inches Conversion | 4 x 4 x 9 |
| Rating in KW | 1.7 |
| Temperature Range | Maximum Temperature is 900°C and 1100°C |
| Heating | By Embedded heater run around the chamber |
| Temp. Controller | By Microprocessor Based PID Digital TemperatureIndicator cum Controller |
| Temp. Sensitivity | ±5°C OR better by digital Microprocessorbased PID controller |
| Relay | Solid state electronic relay. |
| Voltage | Operating Voltage: 220 Volts AC (50 Hz) |
OPTIONAL FEATURES OF MUFFLE FURNACE
- Data logger
- CFR 21 part 11 compliance software for data logger
- Safety digital temperature controller
- Timer
NOTE: Other Customized Sizes Available on Customer Request.
Muffle Furnace
Moisture Analyzer & Infrared Moisture Balance
Karl Fischer Titrator
Brookfield Viscosity Meter
Bomb Calorimeter
Heating Mantle
Digital Ultrasonic Bath

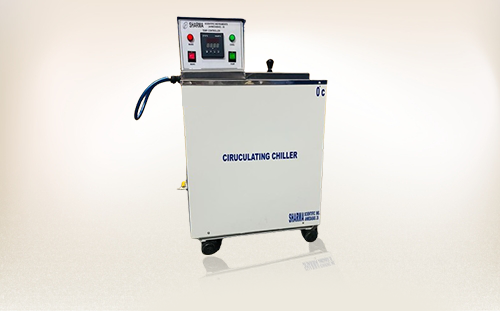

APPLICATIONS OF WATER CIRCULATING CHILLER
- The unit serves the dual purpose i. e. it can be used as a stand alone unit. As well as, a part or subsystem of some bigger system. Temperature Range 5°C to 90°C controlled by Microprocessor based Digital Temperature Controller cum Indicator.
- The Unit is ideal for external temperature control applications to external systems such as Rotary Vacuum Evaporators, Refractometers, Polarimeters, Fermenters, Electrophoresis Chamber, Chromatography Columns, Condensers, Rheometers, and general laboratory cooling applications.
SALIENT FEATURES & CONSTRUCTION OF WATER CIRCULATING CHILLER
- A compact refrigerated/heating circulator.
- Double walled construction.
- Inner Tank made of Stainless Steel (SS-304 grade).
- Outer chamber is made of Mild Steel duly powder coated.
- Heating by immersion heaters
- Cooling by sturdy refrigeration unit done by ISI mark compressor / Condensing Units CFC free & R-134 a eco friendly refrigerant.
- Temperature range 5°C to 90°C.
- Controls temperature within an accuracy of ±1°C by microprocessor based digital temperature indicator cum controller.
- Temperature stability is maintained by internal circulation in bath Thermal loss is prevented by filling PUF (Insulation) in space between the outer body & stainless steel tank.
- Low noise level.
- To work on 220/230V AC supply.
TECHNICAL SPECIFICATIONS OF WATER CIRCULATING CHILLER
| Top Lid | Double walled insulated |
|---|---|
| Temperature | Controlled by microprocessor based digital temperature indicator cum controller. |
| Temperature Range | 5°C to 90°C |
| Temperature Accuracy | ± 1°C. |
| Temperature Display | Digital LED with set value (SV) & process value (PV). |
| Temperature Sensor | RTD (Pt-100) |
OPTIONAL FEATURES OF WATER CIRCULATING CHILLER
| Temperature control by | By profile (Micro Programmable) controller. |
|---|---|
| Communication Port | With interface and data cable to download data to your PC |
| Voltage Stabilizer | Servo or Automatic Stabilizer to regulate in coming voltage |
Cryostat Low Temperature Water Bath – Water Chilling Bath
Laboratory Over Head Stirrer
APPLICATIONS OF DIGITAL OIL BATH
- Double Walled High Temperature Oil Bath having wide range of application, such as oxidation stability test on oils, greases, etc, or any other test requiring high temperature control having high thermal efficiency.
- Double Walled High Temperature Oil Bath is low cost options for heating- ideal tool for Laboratories, Pharmaceutical, petroleum Industries and Institutions.
SALIENT FEATURES & CONSTRUCTION OF DIGITAL OIL BATH
- The Oil bath offered by us is basically designed to tolerate high temperatures with ease.
- Inner Tank and lid made of Stainless Steel (SS-304 grade).
- Outer chamber is made of Stainless Steel.
- Thermal loss is prevented by filling mineral wool (Insulation) in space between the outer body & stainless steel tank.
- Heating elements are positioned in the floor and side walls & a natural mixing of the medium arises, providing better temperature distribution in the bath
- Temperature range 50°C up to 250°C.
- Operating Voltage: 220 Volts AC (50 Hz)
TECHNICAL SPECIFICATIONS OF DIGITAL OIL BATH
| Approximate Capacity | 5 Ltr. | 10 Ltr. | 20 Ltr. |
|---|---|---|---|
| Heating Load | 2.0 KW | 3.0 KW | 4.5 KW |
| Temperature | Controlled by microprocessorbased PID temperature indicator cum controller | ||
| Temperature Range | 50°C up to 250°C | ||
| Temperature Accuracy | ± 2°C. | ||
| Heater Protection | By Stainless SteelPerforated cover | ||
| Stirring Arrangement | By F. H. P. stirrer fittedwith stainless steel shaft. (Optional Can be extra cost) | ||
| Stirring Speed | Can be regulated by speedregulator. (Optional Can be extra cost) | ||
OPTIONAL FEATURES OF DIGITAL OIL BATH
| Temperature control by | By profile (MicroProgrammable) controller. |
|---|---|
| Timer Facility | Can be in built with DigitalElectronic Timer |
| Communication Port | with interface and datacable to download data to your PC |
